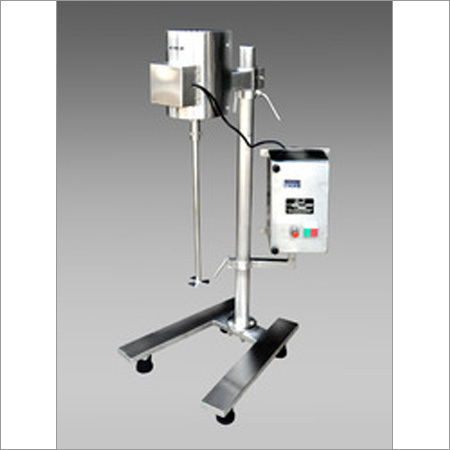

Our organization is known among the leading manufacturers, suppliers and exporters of Laboratory Stirrer. Designed with optimum care and focus on performance, the stirrer is used in laboratory for stirring material or chemical for ensuring uniformity throughout liquid mixture. We are consistently working hard to deliver the best quality products to our customers at industry leading prices. Our in-house quality experts check the entire range of Laboratory Stirrer on certain parameters to ascertain conformity with globally accepted quality norms.
Lotus Engineers brings you Laboratory Stirrer that meets the international standards. This equipment is specifically used for R&D applications and laboratory purposes in industries like Food and beverages, Pharmaceuticals, Cosmetics and Processing.
As the leading Pharma machinery Manufacturer in Ahmedabad, we use the top quality 304 SS grade components to build our machineries thus ensuring our clients are supplied only the best equipment in the market. Being used in various industries, the Laboratory Stirrer is required to perform at various speeds. To facilitate this, we have built a control system which allows the stirrer to rotate at a speed range of 100 to 2800 rpm which gives our clients a huge window to operate efficiently. A very accurate RPM Indicator constantly updates the user about the speed of the machine.
Like all our machineries, our Laboratory Stirrer is sleek, built for high performance and maintenance free operations. We are a prefered Pharmaceutical Machinery Manufacturer in Ahmedabad as we offer both standard sizes as well as customization options to our customers to serve them to the best of our ability.
Features:
All Ss Parts Shall Be Aisi 304 Quality Stainless Steel Materials To Avoid Any Rusting.
Sturdy Base And Specially Designed Shaft Locking Gives Noise Less And Long Trouble Free Performance.
All Product Contact Parts Can Be Easily Dismantled For Cleaning.
Unit Shall Be Provided With Speed Controlling System To Run The Stirrer Shaft At Different Rpm Ranging From 100 - 2800 Rpm As Per Process Requirement.
Unit Shall Be Provided With Rpm Indicator To Monitor The Running Speed Of Lotus Laboratory Stirrer.
Description | Detailed Specifications |
---|---|
Construction | Cgmp Construction. |
Drive Motor Hp | 0.5 Hp (0.37 Kw) |
Drive Motor Rpm | 2820 Rpm |
Power Characteristics | 415 ±10% Volts, 3 Phase 50 Hz, Ac |
Stirrer Shaft Diameter | Dia. 20 M X 800 Mm Long |
Stirrer Blade Type | 2 Different Types Of Blades With Swipe Dia75 Mm |
-1 Nos And Dia 110 Mm -1 Nos | |
Staring Capacity In Ltrs. | 25 To 75 Ltrs. |
Arm Centre Distance | 430 Mm Approx. |
Unit Is Having Threading Type Shaft For Easy Fixing Into Motor Clamp. | |
Overall Dimensions | 850 X 750 X 1940 Mm Total Ht. (Approx) |
